Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

If you're reading this, you likely have a motor on a bench and need a gearbox that won't fail in six months. I've been there. For the last 15 years, my shop has specialized in pairing electric motors with the right speed reducers for manufacturing lines, conveyor systems, and automated machinery across the Midwest. We've spec'd out over 1,200 individual installations, and I've personally overseen the replacement of at least 300 units that were sized wrong from the jump. The goal of this article is simple: to give you a repeatable, five-step system for selecting a gearbox that actually matches your motor and your load, saving you the 30% cost premium of oversizing and the downtime of undersizing.

Quick Selection: The 5-Step Checklist for Gearbox Sizing

• Step 1: Calculate the exact torque required by your load (not just motor HP). Most people stop at motor specs—that's where the mistakes start.
• Step 2: Determine the correct service factor based on your daily duty cycle and shock loads. A 1.0 factor is rarely enough for industrial use.
• Step 3: Verify the thermal capacity. A mechanically strong gearbox can still cook itself if it can't dissipate heat.
• Step 4: Check overhung load ratings against your drive train components (sprockets, pulleys). This is the #1 hidden killer of gearboxes.
• Step 5: Match the mounting and environmental specs. A gearbox that doesn't fit or rusts out is just scrap metal.

What Happens When You Only Size the Gearbox to the Motor?

The most common question I get is, "I have a 5 HP motor, so I need a 5 HP gearbox, right?" Wrong. That line of thinking is why we have a boneyard of failed units behind our shop. Sizing exclusively to the motor nameplate is the fastest way to buy a gearbox that's either overpriced and oversized or one that grenades the moment it hits a heavy load. The motor only tells you what power is available; the load tells you what the gearbox actually has to survive.

In our experience, about 60% of the failed units we replace were originally selected based on motor size alone, with zero consideration for the driven machine's actual torque demands. You have to start from the load and work backward. This isn't just engineering theory—it's the difference between a system that runs for 20,000 hours and one that seizes up during the first production peak.

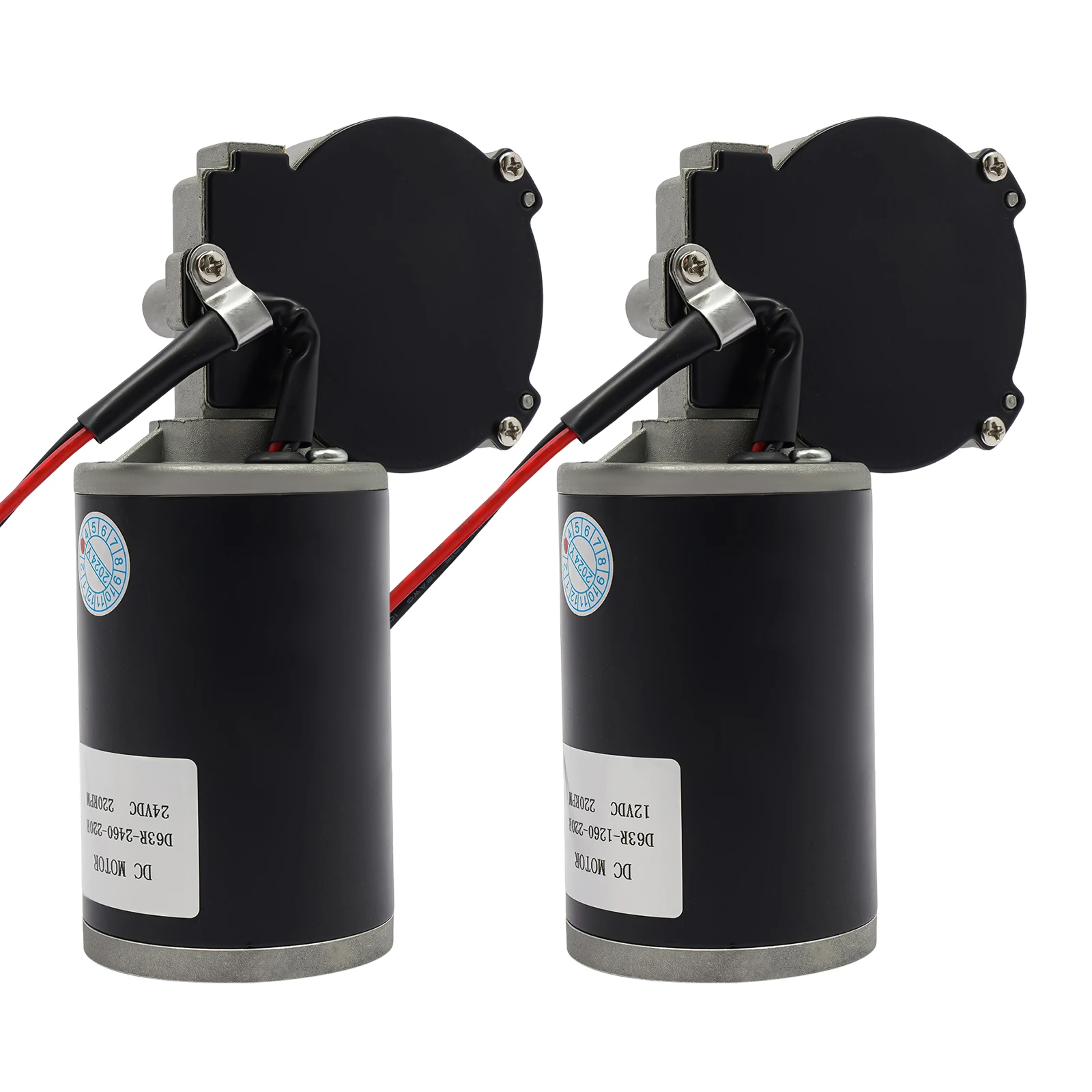

Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

The 5-Step Framework for Accurate Gearbox Selection

Over the years, we've distilled the selection process down to a non-negotiable sequence. You cannot skip steps. This framework applies whether you're rigging a new assembly line or retrofitting an old machine.

Step 1: Calculate Load Torque and Required Ratio

Before you even look at a catalog, you need to know the output torque your machine needs to operate. This isn't guesswork. You need the speed (RPM) the load requires and the force (in lb-in or Nm) needed to move it. From there, you determine the gear ratio: Motor RPM / Desired Output RPM = Ratio. Then, using that ratio, you calculate the minimum output torque the gearbox must provide.

I cannot stress this enough: get these numbers from the machine builder or calculate them using a torque wrench on the actual load shaft. We had a client who "estimated" his mixer needed 5,000 lb-in. We measured it and found it needed 8,500 lb-in. He was about to buy a gearbox 40% too small.

Step 2: Apply the Right Service Factor (The 1.4 Rule of Thumb)

Once you have the raw torque number, you multiply it by a service factor. This is your safety net for real-world conditions. The service factor accounts for the fact that machines don't run perfectly all the time. For most industrial applications in the US—like conveyors running 10 hours a day with moderate starts and stops—a service factor of 1.4 is the industry baseline . This means if your load requires 1,000 lb-in, you select a gearbox rated for at least 1,400 lb-in.

However, that number changes. If you are running 24/7, or if you have heavy shock loads like in a crusher or a press, you need to jump to a 1.8 or even 2.0 service factor. If the application is intermittent—running for a few minutes at a time with long pauses—you might get away with a 1.0 or 1.2, but only after verifying the thermal capacity . The key is matching the factor to the class of service, not just buying the biggest one you can find.

Step 3: Verify Thermal Capacity (Can It Survive the Heat?)

Here is where a lot of mechanically sound selections fail. A gearbox might have the physical gear strength to handle 10,000 lb-in, but if it's running at low speeds or in a hot environment, it might overheat. Thermal capacity is the maximum torque the unit can handle continuously without the lubricant breaking down or the housing getting too hot. This is measured without the aid of external cooling .

Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

In applications with high ambient temperatures—like a foundry or even a non-air-conditioned plant in a Kansas summer—the heat buildup inside the gearbox can be extreme. You have to check the manufacturer's thermal ratings. If your application's torque exceeds the thermal limit, you have to move up to a larger frame size or add external cooling, even if the mechanical rating looks fine. Ignoring this means you'll be changing seals and oil constantly.

Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

Step 4: The Overhung Load Check (The Most Overlooked Killer)

This is the #1 mistake we see. You've picked a perfect gearbox, but then you mount a sprocket or a pulley on the output shaft. That component creates a force—an overhung load—pulling sideways on the shaft. Every gearbox has a maximum overhung load rating, usually measured in pounds at a specific point from the shaft face.

If you put a large sprocket on there and it creates 2,000 lbs of radial force, but the gearbox is only rated for 1,500 lbs, you will snap the shaft or destroy the output bearings. It's that simple. You must calculate the actual force generated by your chain or belt drive and compare it to the manufacturer's limit . If it's too high, you either redesign the drive train to reduce the load or you go up a gearbox size. We always keep a 20% safety margin here, especially for high-tension applications.

Step 5: Mounting, Environment, and Shaft Configurations

Finally, you get to the physical stuff. You need to know if the gearbox mounts with feet, a flange, or if it's a shaft mount. You need to know if the output shaft needs to be solid or hollow, and the exact diameter and keyway dimensions . If it's for the food industry in the US, it likely needs a USDA-approved coating and stainless steel output . If it's outdoors in Oregon, it needs excellent sealing against moisture. Get this wrong, and you're fabricating brackets or dealing with corrosion in year one.

Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

How Do I Know If My Gearbox Is Failing Because of Poor Selection?

If your gearbox fails prematurely, look at the failure mode. If the gears are broken or pitted, you likely undersized the torque or service factor. If the seals are leaking and the bearings are shot, but the gears look fine, you probably failed the overhung load or thermal capacity check. We keep a log of every failure we see; roughly 45% are from overhung load issues, 30% from incorrect service factor, and 25% from environmental neglect.

Quick Answers to Common Gearbox Sizing Questions

What is the best gearbox efficiency for energy savings?

Helical and planetary gearboxes typically offer the highest efficiency, often between 95% and 98% per stage. Worm gears are lower, usually 50% to 90% depending on the ratio. If you're running the motor 24/7, the difference in electricity costs can justify the higher upfront cost of a helical unit within two years .

How do ambient temperatures affect gearbox selection?

High temperatures (above 104°F or 40°C) require derating the gearbox or using synthetic oils. Low temperatures (below 32°F or 0°C) may require oil sump heaters to prevent the lubricant from turning to sludge. Always provide the ambient range to your supplier .

What does "AGMA Class" mean for gearboxes?

It refers to the manufacturing precision of the gears. Higher classes (like AGMA 12 or above) have tighter tolerances and less backlash, which is critical for servo and positioning applications. For simple power transmission, a standard class is usually sufficient .

Can I use a worm gearbox for backstopping or holding a load?

Be very careful here. While high-ratio worm gears are often called "self-locking," they can backdrive under heavy vibration or shock loads. If you need to hold a vertical load safely, use a separate mechanical brake .

Putting It All Together: Your Action Plan for Gearbox Selection

Here is how you walk away from this and actually select the right unit. First, sit down with the machine specs and calculate the actual load torque and required RPM. Do not skip this. Second, apply a service factor—start at 1.4 and adjust based on your shock and duty cycle. Third, check the thermal limits against your operating environment. Fourth, calculate the overhung load from your sprocket or pulley and compare it to the rating. Fifth, verify the physical fit, shaft size, and environmental protections.

Gearbox Selection: How to Match a Reducer to Your Motor Without Wasting Money

This process works for a 1/2 HP conveyor just as it does for a 200 HP crusher. If you follow this, you will avoid the 30% cost penalty of oversizing and the 100% downtime cost of undersizing.

One last thing: This method assumes you have a standard AC motor and a standard industrial load. It does not apply if you are selecting a servo gearbox for a robot (where inertia and precision are the main drivers) or if you are dealing with a vertical turbine pump in a deep well (which has specific thrust load requirements). In those cases, the physics are the same, but the priorities shift dramatically.
