How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

You have a motor sitting on the bench and a machine that needs to move slower with more force. The part you need is a gear reducer. But if you pick the wrong one, the motor will stall, overheat, or shake itself apart within weeks. I have spent the last fifteen years specifying, installing, and troubleshooting gearmotors across conveyor lines, packaging machines, and robotic cells. I have personally worked through over seven hundred application issues where the root cause traced back to a mismatched reducer. The conclusions I share here come from real-world fixes, not textbook theory—solutions that held up under production shifts and got the line running again.

This article gives you a simple, three-part framework to match any gear reducer to your motor correctly. You will learn the exact torque calculation you must run, why the ratio is only half the story, and how mounting kills more installations than horsepower ever will.

The Three Things You Must Match (And Why)

A gear reducer has one job: take the motor’s high speed and low torque, then flip it to low speed and high torque. But if those three elements—torque, speed ratio, and physical connection—don’t line up perfectly, the system fails. I have seen a perfectly good 5 HP motor burn out in a month because the reducer’s torque rating was 10% too low for the peak load. I have also watched a brand-new $2,000 gearbox sit on a shelf because the input shaft diameter was 0.5 mm too large for the motor.

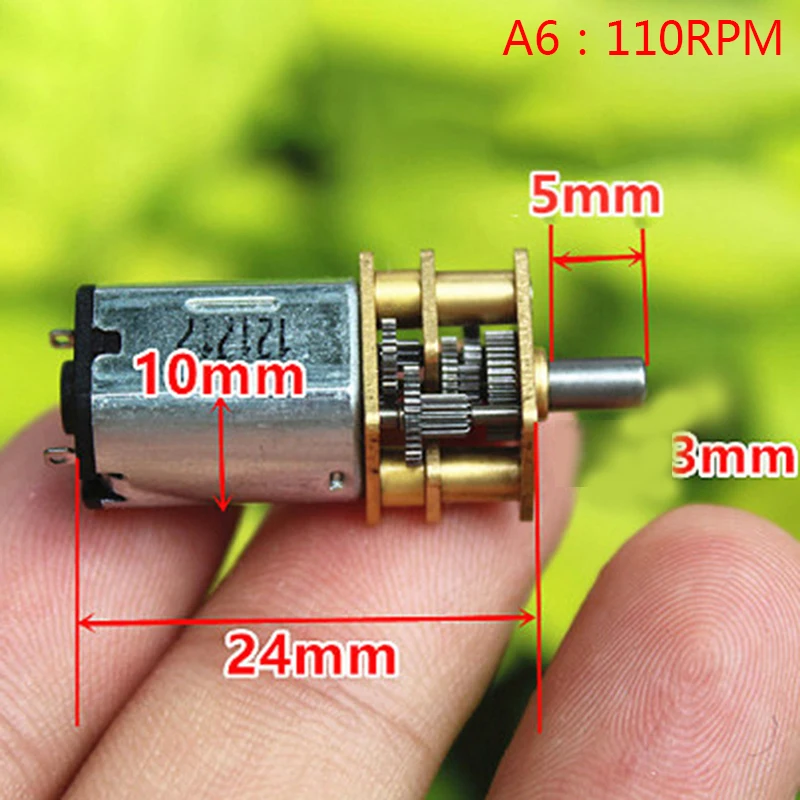

How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

Here is the decision-making framework I use on every single job. You will use it to check your current situation or to spec a new purchase.

Don't Want to Read the Fine Print? Run This 3-Step Check First

If you are standing in front of a motor right now, do these three things in this order. If you fail any one of them, stop and go back to the drawing board.

• Step 1: Confirm the reducer’s output torque meets or exceeds 125% of your machine’s peak demand. This is your safety margin. If you skip this, you will replace bearings.
• Step 2: Verify the exact ratio by dividing motor nameplate RPM by desired output RPM. Ignore the model number. Do the math yourself.
• Step 3: Physically check the input shaft diameter and pilot fit against the motor’s output. Paper specs lie. Calipers do not.

Do these three steps and you will avoid 90% of the common match-up failures I see in the field.

1. Torque: The Number That Actually Matters

Horsepower gets all the attention, but torque is what does the work. When you match a gear reducer, you are not matching horsepower. You are matching torque capacity. The motor generates torque, the reducer multiplies it, and the machine demands it. If the reducer cannot handle the multiplied torque, the gears chip or the bearings fail.

How to Calculate the Torque You Really Need

Grab the motor nameplate. You need two numbers: the motor’s output torque and the full-load RPM. If the nameplate only shows horsepower, use this:

Motor Torque (in-lb) = (HP x 5252) / Motor RPM

How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

That gives you the torque the motor pushes. Now multiply that by the gear ratio of the reducer you are considering. The result is the theoretical output torque. But here is the hard rule I use: never run a reducer above 80% of its rated mechanical or thermal torque limit. If the calculation puts you at the very top of the reducer’s spec sheet, you need the next size up.

I learned this the hard way on a conveyor retro-fit in 2019. The math said a Size 3 reducer would work. Within six months, the output seal leaked and the bearings sounded like gravel. We replaced it with a Size 4, which ran at 72% of its rating. That was five years ago. It still runs silent .

How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

2. Ratio: It's Simple Math, But Everyone Gets It Wrong

The ratio tells you how many times the motor spins to turn the output shaft once. A 20:1 ratio means twenty motor rotations equal one output turn. But here is the mistake I see constantly: people pick a ratio based on what is "close enough." In gear reducers, close enough breaks things.

The Exact Formula You Must Use

Required Ratio = Motor Nameplate RPM / Desired Output RPM

Let’s say your motor runs at 1750 RPM and you need the shaft to turn 70 RPM. That is 1750 / 70 = 25. You need a 25:1 reducer. If the manufacturer offers 24:1 or 26:1, do not take it. I don’t care if the lead time is eight weeks. Wait for the exact 25:1. A different ratio changes your output speed, which changes the torque your machine actually gets. If you run a 24:1 on that 1750 RPM motor, your output is 72.9 RPM. That extra 3 RPM might not sound like much, but it changes the torque curve and can starve a downstream process of power .

How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

On a servo motor running at 3000 RPM needing 30 RPM output, the math is 3000/30 = 100. You need exactly 100:1. In high-precision robotics, a ratio off by even 2% can crash a positioning routine .

When Does a Planetary Make Sense vs. A Helical?

This is the question clients ask me most. You have two motors, two different machines, and you are holding two different types of reducers. The answer comes down to where the machine runs.

Choose a planetary gear reducer when: you need high precision, minimal backlash, and the machine cycles repeatedly in a small space. Robotics, CNC axes, and positioning tables live here. A planetary puts the torque in a tiny package and keeps the shaft play under five arc-minutes .

Choose a helical (or helical-bevel) reducer when: the machine runs continuously, carries heavy but steady loads, and noise matters. Conveyors, mixers, and pumps live here. Helical units hit 95% efficiency and run quieter because the teeth engage gradually .

I once watched an engineer bolt a high-precision planetary onto a rock crusher. It failed in two weeks because the shock loads shattered the planet gears. The planetary was built for accuracy, not impact. He should have used a heavy-duty helical or bevel unit with a service factor of 2.0 or higher .

3. Mounting and Shaft Fit: The Part Nobody Checks Until It's Too Late

You can do the torque math perfectly and pick the exact ratio, but if the motor shaft does not physically fit into the reducer, you own two expensive paperweights. This is not a joke. I get called to look at "defective" motors at least twice a year, only to find the shaft collar on the reducer is 0.010" too small.

The Physical Fit Checklist

• Shaft Diameter: Measure the motor shaft with a caliper. Compare it to the reducer input bore spec. If the reducer uses a clamping system, the tolerance is tight.
• Pilot Diameter: This is the raised ring on the motor face that centers it in the reducer. If the pilot is too big or too small, the motor sits crooked and the coupling binds.
• Bolt Pattern: C-face motors (the most common in the US) follow NEMA standards. If you have a NEMA motor, you generally need a NEMA-compatible reducer. But check the bolt circle diameter anyway. Metric motors from imported equipment often break this rule .

In 2022, I helped a food plant swap a motor on a dough mixer. The paperwork said "standard C-face." The motor was standard. The reducer was standard. But the reducer had a metric pilot because the original machine came from Europe. We spent four hours machining an adapter ring. Measure everything .

Quick Reference: Which Reducer Goes Where?

I keep a simplified version of this list in my toolbox. Use it as a first-pass filter.

• Robotics / CNC: Planetary. You need the precision and low backlash .
• Conveyors (Continuous Run): Helical In-line. High efficiency, quiet, long life .
• Mixers / Agitators: Helical-bevel or Helical-worm. Handles the right-angle output and varying loads .
• Gates / Lifts (with self-braking need): Worm gear. The inherent friction prevents back-driving .
• Heavy Shock Loads (Crushers / Shredders): Bevel or Heavy-Duty Helical. Look for a service factor above 1.5, preferably 2.0 .

Frequently Asked Questions from People Standing on the Plant Floor

Can I use a gear reducer with any electric motor?

Physically, yes, if the shafts and mounts align. But "can" and "should" are different. The motor’s speed and torque curves must match the reducer’s input limits. A standard inverter-duty motor works fine with most reducers. A high-speed servo needs a reducer specifically rated for those RPMs, or the input bearings will overheat .

What happens if the gear ratio is slightly off?

The machine runs at the wrong speed. That sounds obvious, but the real danger is torque. If the ratio is lower than spec, the output torque drops. Your motor might run continuously in an overload condition trying to make up the difference, which burns the windings .

How do I know if my reducer is overloaded?

Listen to it. Seriously. After it runs at full load for an hour, shut it down and feel the housing near the output bearings. If you cannot keep your hand on it, you are overheating the lubricant and cooking the bearings. Check the nameplate service factor. If it is 1.0 and you are running at full motor load, you have no safety margin .

Is a cheaper gearbox ever the right choice?

Yes, but only on light-duty, intermittent-use machines. If the machine runs two hours a day, a standard-duty unit with a lower service factor might last ten years. If the machine runs 24/7, buy the best helical or planetary unit you can justify. I have replaced three "bargain" gearboxes in five years on a continuous line. The name-brand unit I finally installed is still running on year eight .

Putting It All Together: Your Decision Path

Here is the exact sequence I follow when I walk into a new project. You can copy this.

How to Match a Gear Reducer to Your Motor Without Wasting Time or Money

Step A: Get the Motor Data. Write down RPM, HP or Torque, shaft diameter, and frame type.

Step B: Get the Machine Demand. What RPM does the machine need? What is the peak load in inch-pounds or Newton-meters? If you don’t have the load, measure the motor amps on a similar machine running the job. That current draw tells you torque.

Step C: Calculate Minimum Ratio. Motor RPM / Desired Output RPM = Ratio.

Step D: Calculate Required Output Torque. Motor Torque x Ratio = Theoretical Torque. Then add 25% margin. Theoretical Torque x 1.25 = Your Target Rating.

Step E: Select the Type. Planetary for precision and space. Helical for efficiency and quiet. Worm for right-angle and backstop needs.

Step F: Check the Fit. Does the input match the motor shaft? Does the output match the machine shaft or coupling? Does the mounting feet line up?

Do these six steps, in this order, and you will buy the correct reducer every time.

One final thought: I have never, in fifteen years, seen a machine fail because the reducer was "too robust." I have seen hundreds fail because it was too weak. If you are standing between two choices, buy the one with the higher torque rating and the better service factor. It costs more today. It will cost far less over the next decade.
