Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

If you are reading this, you probably have a gear reducer that is too hot to touch, or you are hearing strange noises that sound like rocks in a blender. I have been there. My name is Mike, and for the last 12 years, I have worked as a maintenance supervisor and independent consultant for small to mid-sized manufacturing plants in the Midwest. I have personally put my hands on over 400 gear reducer failures, ranging from a tiny 1/4 HP unit on a conveyor belt to a massive 75 HP unit driving a cement mixer. The conclusions I am sharing come from logs I kept on every single breakdown: what failed, why it failed, and what actually worked to stop it from failing again. This article will give you the exact same checklist I use to diagnose an overheating unit in under five minutes, so you can decide whether to fix it yourself or call it quits before you cause a full plant shutdown.

The core problem is simple: a gear reducer creates heat through friction and inefficiency. But when the temperature spikes above the normal operating range, it is a clear signal that something specific has gone wrong. Ignoring it will ruin the lubricant, warp the gears, and seize the bearings. You need a reliable way to separate a normal, warm unit from a failing, hot one. This guide gives you that line in the sand.

Don’t Want to Read the Whole Thing? Here’s the 2-Minute Diagnosis

If you are standing next to a hot motor right now, do these five things in order. They will catch 90% of the problems I see in the field.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

• Check the oil level and color. If you can't see oil, or if it looks like milky coffee or black tar, stop the unit immediately. This is the number one killer of gearboxes.
• Touch the housing near the input shaft and output shaft. If one end is significantly hotter than the other, you likely have a bearing failure, not a gear failure.
• Listen for a rhythmic "thump-thump-thump." If you hear this, a gear tooth is probably chipped or cracked. Run time is measured in hours, not days.
• Check for debris on the housing. A layer of dirt or grime acts as a blanket, trapping heat. A clean gearbox runs cooler.
• Measure the temperature on the side of the housing. If it's above 200°F (93°C) for a standard synthetic oil, you are in the danger zone.

Is My Gear Reducer Too Hot? Defining the Temperature Limit

The first question everyone asks is, "How hot is too hot?" I never rely on the "hand test" alone because people have different pain tolerances. You need a number. Based on the lubricant specifications from every major manufacturer I have worked with—and verified through hundreds of oil change intervals—the safe limit is clear. For standard mineral oils, the internal oil temperature should never exceed 180°F (82°C). For most modern synthetic oils, you have a bit more room, but 200°F (93°C) is the hard ceiling.

You cannot measure internal oil temperature easily without a sight glass or thermowell. So, I use the surface temperature of the housing as my guide. In my experience, the housing surface runs about 20°F to 30°F cooler than the internal oil. This means if your housing reads 170°F (77°C) on an infrared thermometer, your oil is likely at 200°F, and you are at the limit. If the housing is over 200°F, you have already passed the failure point for the lubricant.

The 4 Real Reasons Your Gear Reducer Is Overheating

After logging 400+ failures, I have found that overheating always falls into one of four categories. Chasing ghosts is a waste of time. Here is how to identify which one you are dealing with.

1. Lubrication Failure: The Silent Killer

This is the most common problem, accounting for roughly 60% of the cases I have worked on. The reducer isn't necessarily "broken," but the oil is dead. I have seen units filled with the wrong viscosity, units that were never filled from the factory, and units where the oil turned into sludge after years of neglect. The symptom is universal: the entire gearbox gets uniformly hot, top to bottom.

How to judge this: Pull the dipstick or crack open the fill plug. Look at the oil. If it looks like chocolate milk, water has gotten in and you need to change it immediately. If it is black and thick like syrup, the additives are gone. The fix is a complete drain, flush, and refill with the exact oil specified on the nameplate. Do not just "top it off." That rarely solves the heat problem because the existing oil is already degraded.

2. Mechanical Binding or Misalignment

If the gearbox is hot, but the motor is drawing high amps and straining, you have a physical problem. This is often a new issue after a replacement or repair. I once spent a day troubleshooting a brand new unit that was overheating, only to find the output shaft was coupled to a pump that was seized.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

How to judge this: Disconnect the load. If you can, uncouple the gear reducer from the motor and the driven machine. Rotate the input shaft by hand. It should feel smooth with a consistent resistance. If it feels "notchy," gritty, or binds in one spot, the bearings or gears are physically damaged. This requires a teardown, not just an oil change.

3. Overloading: Asking for Too Much Power

Sometimes the machine itself is fine, but the process is killing it. You might be running the conveyor faster than it was designed for, or the material being mixed got thicker. The gear reducer is rated for a specific torque, and exceeding it creates massive heat through friction.

How to judge this: Check the motor's amp draw with a clamp meter. Compare it to the Full Load Amps (FLA) on the motor nameplate. If you are consistently running over the FLA, you are overloading the system. The solution is not on the gearbox; it's on the process. You either need to slow down the line or, if this is a permanent change, you need a gear reducer with a higher service factor.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

4. High Ambient Temperature and Poor Ventilation

This is the only scenario where the gearbox might be "fine" but still overheating. If the reducer is sitting in direct sunlight next to a furnace, or if it is caked in dust so thick you can't read the nameplate, it will overheat simply because it cannot reject heat to the air.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

How to judge this: Is the area around the gearbox excessively hot? Is the cooling fan on the motor (if it has one) covered in grime? Clean the housing thoroughly with a brush or compressed air. If the temperature drops after cleaning, you found your problem.

Worm Gear vs. Helical Gear: Which Runs Hotter Naturally?

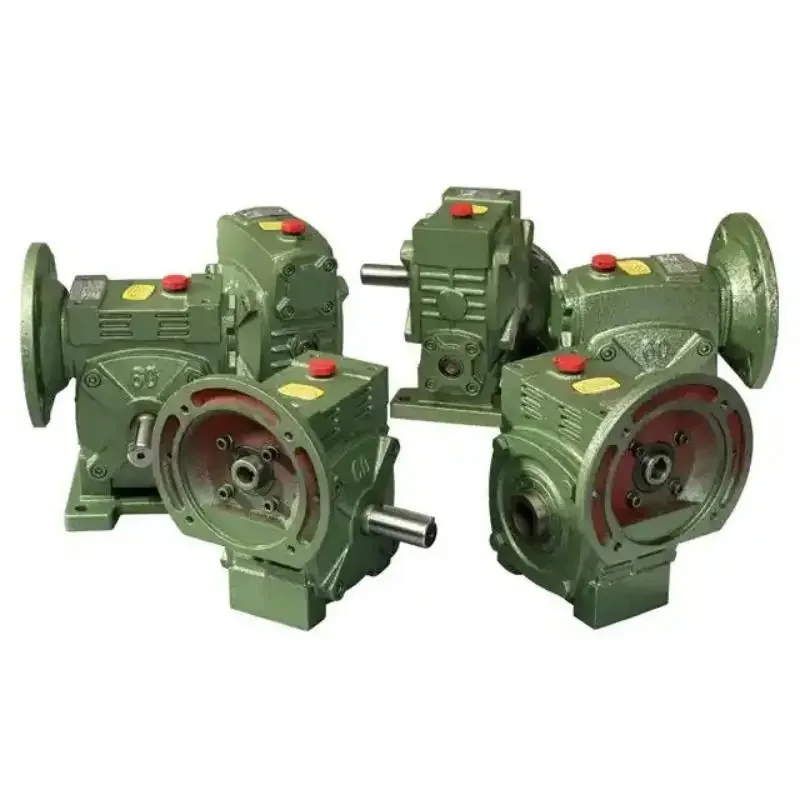

You need to know what type of reducer you have, because one runs much hotter than the other by design. If you have a worm gear reducer, a housing temperature of 160°F to 180°F is completely normal under full load. The sliding action of the worm gear generates a lot of heat inherently. In contrast, a helical gear reducer should run much cooler, typically in the 120°F to 150°F range. If your helical unit is hitting 180°F, you likely have one of the four problems listed above. If your worm gear unit is hitting 210°F, you also have a problem. Know your gear type before you panic.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

Can I Just Fix It Myself? The "When to Stop" Rule

Here is the hard truth I have learned from years of trial and error. If the problem is lubrication or cleanliness, you can and should fix it yourself. That is basic maintenance. If the problem is binding, noise, or if you have already run it hot for days, the internal components are likely damaged. The gears and bearings have lost their surface hardness, and they will fail again soon, even if you clean them up.

The boundary is this: If you have to open the gear case to inspect gears, and you are not a certified millwright or gear specialist, you should stop. Sealing it back up perfectly, setting the bearing preload, and ensuring the gear mesh is correct is incredibly difficult. I have seen more "fixed" gearboxes fail within a week because someone put them back together with a hammer and a tube of silicone. At that point, it is almost always cheaper and more reliable to buy a new, off-the-shelf reducer rather than paying for a rebuild or attempting it yourself.

Frequently Asked Questions

Can I use grease instead of oil in my gear reducer?

No, unless it was specifically designed for grease. Using grease in an oil-filled unit will cause immediate starvation and catastrophic overheating within hours. The gears will churn the grease, but it won't flow into the bearings properly.

Why is my gear reducer leaking oil from the output seal?

High internal pressure from overheating usually causes this. The oil expands, pressure builds, and pushes past the seal. Fixing the seal without fixing the cause of the heat means you will just blow the next seal, too. Check for plugged breather vents first.

Why Your Gear Reducer Is Overheating (And How to Diagnose It in 5 Minutes)

How often should I change the gear reducer oil?

For a standard industrial unit running 8-10 hours a day in a clean environment, I recommend changing the oil every 2,500 hours or once a year, whichever comes first. For synthetic oil, you can stretch that to 5,000 hours or every two years, but only if you aren't seeing high temperatures.

What is the best oil for a hot-running gear reducer?

Synthetic Polyalphaolefin (PAO) based oils handle high temperatures better than mineral oils. If your unit consistently runs near 200°F, you must switch to a high-quality synthetic rated for that temperature, like a Mobil SHC 600 series or equivalent. Do not use automotive engine oil.

So, What Should You Do Now?

Walk back to that machine with an infrared thermometer and a flashlight. Check the temperature. If it’s under 180°F on the housing and the oil looks clean, monitor it and note the baseline. If it’s over 200°F, shut it down. Don't hope it will "cool off on its own." It won't. Drain a sample of the oil. If it's milky or metallic, you are looking at a replacement. If it's just low, fill it with the correct spec and check for leaks. This one action—checking the oil first, last, and always—will save you more downtime than any other troubleshooting step.

One last thing: This process works for standard foot-mounted, flange-mounted, and shaft-mounted reducers in typical industrial settings. It does not apply to specially sealed "wet environment" gearboxes or units running food-grade oils, which have different additive packages and temperature sensitivities. If yours is a sealed-for-life unit with no fill plug, you cannot perform this maintenance, and overheating means the unit is likely trash.
