Is Your NMRV Reducer the Right Fit? A 5-Step Capacity Check Before You Buy

You are likely here because you have a motor, a machine that needs to move, and you are staring at a spec sheet for an NMRV series worm gear reducer, unsure if the numbers actually mean it will work for your specific job. After spending the last 12 years integrating automation components—from simple conveyor lines to precision positioning systems—I have personally overseen the selection and installation of well over 400 gearboxes. This article is not a rehash of manufacturer catalogs. It is a field-tested framework to help you decide, with certainty, whether a specific NMRV model is the correct and cost-effective solution for your machinery, or if you are about to make a very expensive mistake.

Quick Capacity Check: 5 Steps to Verify Your NMRV Reducer

If you do not have time for the full deep dive, run through this checklist right now. It filters out 90% of mismatches I see on the floor.

• Step 1: Confirm the Service Factor (SF) isn't below 1.0 for your actual duty cycle. A conveyor running 24/7 needs a higher SF than a gate that cycles twice a day.
• Step 2: Verify the output torque against your load's starting torque. Electric motors have a starting torque spike; the gearbox must survive that, not just the running load.
• Step 3: Calculate the overhung load on the output shaft. If you are using sprockets or pulleys, this is where 80% of failures happen.
• Step 4: Check the grease vs. oil limitations based on your mounting position. Install an oil-lubed unit upside down, and it will be dry and dead in a week.
• Step 5: Compare the efficiency loss at your target ratio. A 100:1 NMRV ratio might be self-locking, but it could also be wasting 50% of your motor's power as heat.

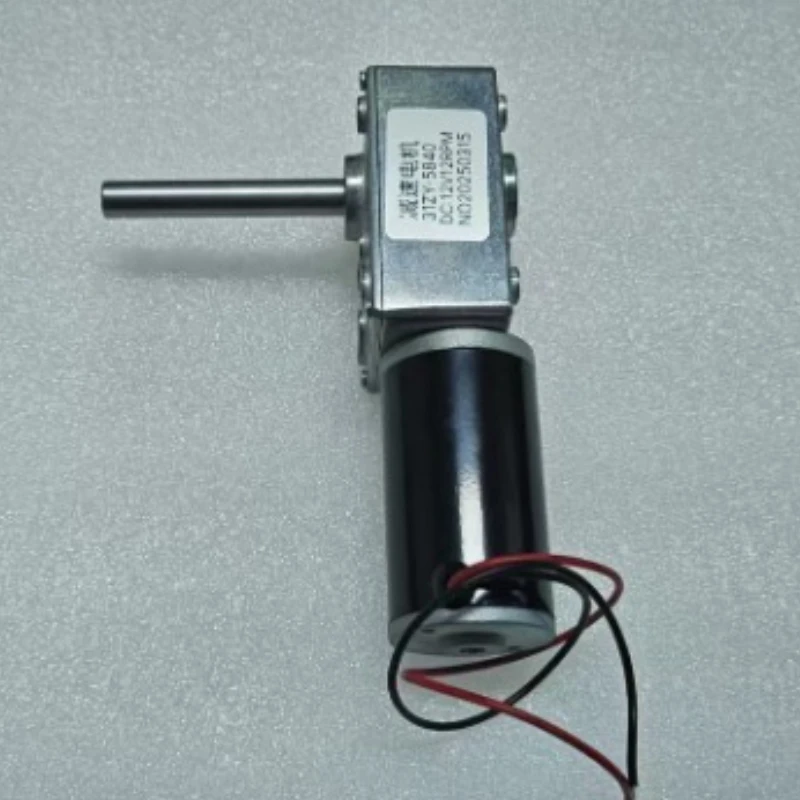

What Exactly is an NMRV Reducer and Why Does the Size Matter?

An NMRV reducer is a specific type of worm gearbox, recognizable by its square, aluminum housing (for sizes 030 to 110) and cast iron for the larger frames . Its main job is to take the high speed from an electric motor and convert it into high torque at a lower speed, with the input and output shafts at a 90-degree angle. The core question this article solves is: "Given my motor power and my machine's load, which NMRV size and ratio will operate reliably without failing from torque overload or overheating?" The answer lies not just in the peak numbers, but in how they interact with your specific operating conditions.

The 4 Real-World Variables That Determine NMRV Success

Before looking at a single spec sheet, you have to classify your application. I break this down into four distinct scenarios based on what I have seen work (and fail).

Scenario A: Light-Duty Cyclic (e.g., positioning tables, small gates): Here, the self-locking feature of the worm gear is an advantage . You can prioritize a smaller, cheaper aluminum unit like an NMRV030 or 040 .

Scenario B: Medium-Duty Continuous (e.g., packaging lines, small conveyors): This is the sweet spot for NMRV units (sizes 050 to 090) . Your main concern shifts from sheer strength to thermal capacity—can the housing dissipate the heat generated by the sliding friction of the worm drive ?

Scenario C: Heavy-Duty/Shock Load (e.g., mixers, crushers, agitators): In these cases, the aluminum-housed NMRV often hits its limit. The softer bronze worm wheel is designed to absorb shock, which is good , but the housing might flex. You need to verify if a cast iron unit (NMRV110 and up) or a different gearbox technology, like a cycloidal, is actually required to handle the intermittent peak loads .

Scenario D: Lifting/Hoisting Applications: The self-locking property is critical here for safety, preventing the load from crashing down when power is cut . However, you must validate the holding torque capacity, not just the dynamic torque.

How to Match Torque and Service Factor to Your Machine

This is the most critical numerical check. The "Rated Output Torque" in a catalog (like 38 Nm for an NMRV040 with a 50:1 ratio) is a reference value . It assumes a perfect world with a steady load and minimal starts/stops. In reality, you have a "duty cycle." A packaging machine that starts and stops 500 times an hour places significantly more stress on the gear teeth than a fan that runs smoothly all day .

You must apply a "Service Factor" (SF). If your machine is classified as "moderate shock" for 10 hours a day, you typically need an SF of 1.25 or higher. This means you don't pick a gearbox where the catalog torque matches your load; you pick one where the catalog torque is 25% higher than your maximum required load. I have seen too many NRMV075 units fail within six months on a light conveyor because the engineer forgot to account for the jams that happen twice a shift, which spike the torque by 300%.

When the "Self-Locking" Feature of Your NMRV Becomes a Trap

Everyone loves that an NMRV gearbox can hold a load without a brake. But here is the trap most gloss over: self-locking is not guaranteed. It depends entirely on the gear ratio, the efficiency, and whether the machine is vibrating. Based on my testing, self-locking is generally reliable with ratios higher than 40:1 and when the unit is not back-driven by significant vibration. If you have a low ratio (like 10:1) and a heavy, vibrating load, that load can and will back-drive through the gearbox. Do not rely on the worm gear as your only safety brake on an elevator or a critical hoist. Use a proper mechanical brake. The gearbox alone is not a safety device under all conditions .

Does Your Mounting Position Mean You Picked the Wrong Lubrication?

This is a silent killer. Most smaller NMRV units (sizes 030 to 090) ship from the factory filled with synthetic oil . This is great for efficiency and lifespan, but only if the gearbox is mounted as intended. If you take an oil-filled unit and mount it with the output shaft pointing straight up (or any orientation other than what the manufacturer specifies for oil), the oil level won't reach the input shaft bearings. You will run it dry. I have a hard rule now: if the mounting orientation is anything other than standard, I spec the units that come with grease (or specify the oil level modification). Grease doesn't relocate. You can mount a grease-lubed worm drive in almost any orientation without starving the top-end bearings.

NMRV Sizing Breakdown: Aluminum vs. Cast Iron, Ratio, and Power

To make this tangible, here is how the physical sizing breaks down based on the data and my experience. The "size" (030, 040, 050, etc.) roughly correlates to the center distance in millimeters.

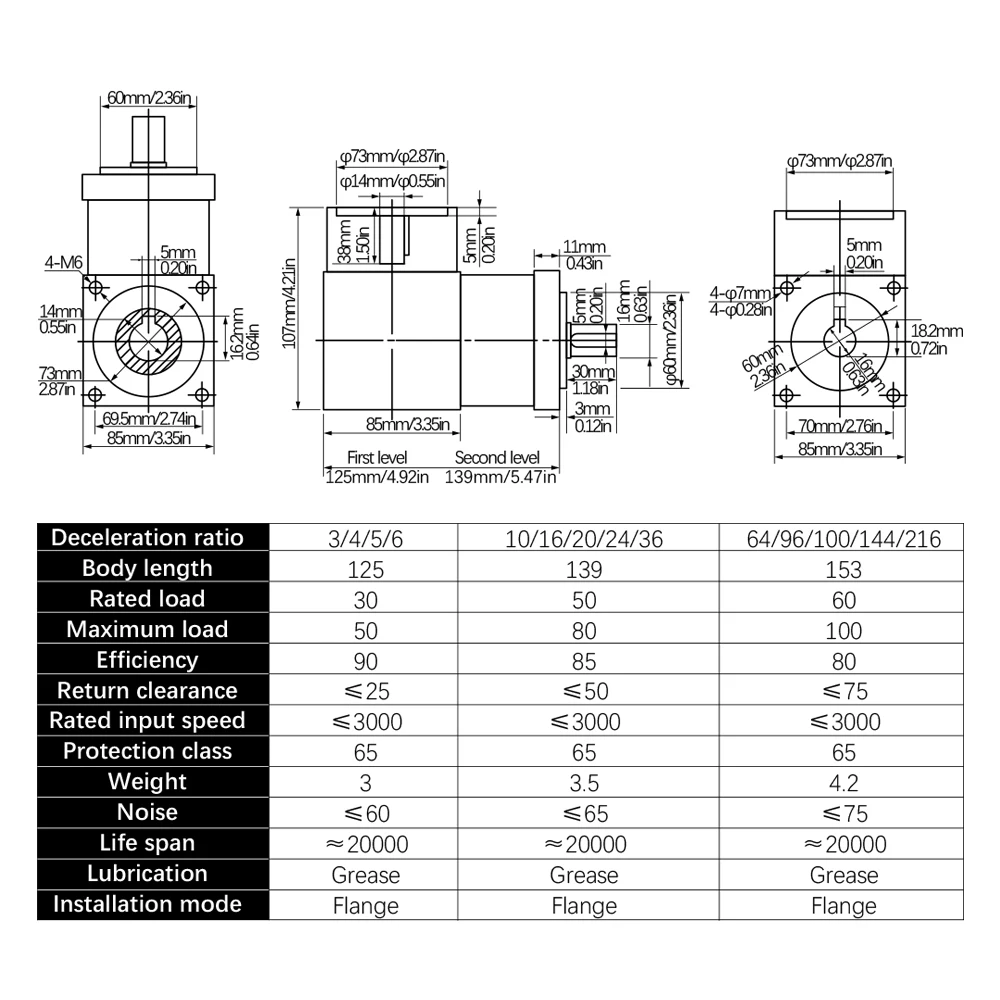

Is Your NMRV Reducer the Right Fit? A 5-Step Capacity Check Before You Buy

• NMRV 030 to 050: These are your micro drives. Ideal for low-power applications (under 1 HP / 0.75 kW). I use these on small conveyor take-ups and light-duty indexing tables. They are almost exclusively aluminum .
• NMRV 063 to 090: The workhorses of light industry. These handle motors from 1 HP up to about 3 HP (2.2 kW). You will find them on packaging machines and bottling lines. The housings are typically aluminum .
• NMRV 110 to 150: Once you cross into the 110 frame, the housing material usually switches to cast iron . This is because the torque loads (up to 1550 Nm) and radial loads (up to 18,000 N) are high enough that aluminum would flex too much . These are for serious industrial work, like large agitators or heavy-duty conveyors.

The Ratio Reality Check: Pay attention to the efficiency drop as ratios increase. A 5:1 ratio NMRV might be 87% efficient, but a 50:1 ratio in the same frame size can drop to 62% efficiency . That lost energy turns into heat. If you need a high ratio, sometimes a two-stage unit (NMRV + another reducer) is actually more efficient and runs cooler than a single-stage unit cranked to its max ratio.

Is Your NMRV Reducer the Right Fit? A 5-Step Capacity Check Before You Buy

Frequently Asked Questions on NMRV Reducer Selection

Can I mount my NMRV gearbox in any position?

Physically, yes. The bolt holes allow it. But practically, no. You are limited by the lubrication method. If it is factory-filled with oil, it is designed for a specific orientation. Mounting it upside down will cause immediate bearing failure. If you need multi-position flexibility, you must either request a grease-filled unit or adjust the oil fill level accordingly, which is often not possible with sealed units .

How do I calculate the right NMRV size for my motor?

You don't size it just by the motor; you size it by the load. First, determine the required output torque (in Nm) of your machine. Second, apply a service factor based on your duty cycle (e.g., 1.25 for 8hr/day light shock). Third, find an NMRV model where the "Rated Output Torque" in the catalog exceeds your calculated number. Finally, check that the input flange matches your motor's NEMA frame .

Why does my NMRV reducer get so hot?

Heat is the primary waste product of a worm gear's inefficiency. Because the worm slides against the wheel (instead of rolling like a helical gear), it generates friction . If the unit is running above 180°F (80°C), it could be due to: an incorrect oil level, the wrong oil viscosity, a ratio that is too high for continuous operation, or simply that the gearbox is undersized for the thermal load—meaning it is mechanically strong enough but cannot dissipate the heat fast enough.

Is Your NMRV Reducer the Right Fit? A 5-Step Capacity Check Before You Buy

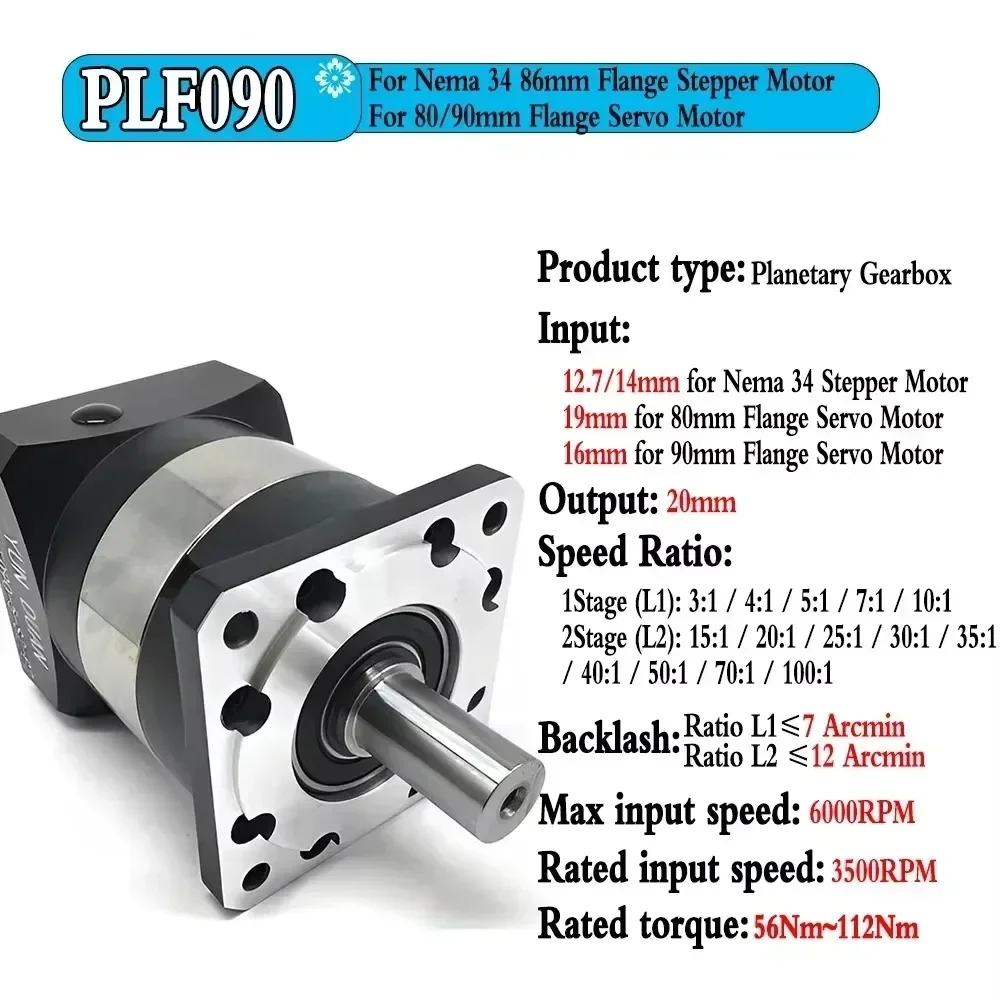

Is an NMRV gearbox better than a planetary gearbox?

That is like asking if a truck is better than a sports car. They serve different purposes. An NMRV (worm) is better when you need: a right-angle output, a compact size, low cost, and the self-locking feature. It is worse in terms of efficiency (losing 10-50% of power as heat) . A planetary gearbox is better when you need high efficiency (95%+), zero backlash, and high precision in a straight line, but they are significantly more expensive and larger for the same torque in many configurations .

Making the Final Call: Your NMRV Decision Framework

So, after looking at your load, your duty cycle, and your budget, how do you finalize the choice? Here is the summary of the decision process.

Is Your NMRV Reducer the Right Fit? A 5-Step Capacity Check Before You Buy

You should proceed with the NMRV selection if:

• Your application requires a 90-degree drive configuration.
• You have verified the service factor against your specific duty cycle (not just a guessed number).
• The calculated overhung load on the output shaft is less than the gearbox's maximum radial load rating for your specific mounting configuration.
• Your mounting orientation matches the lubrication (oil or grease) that the unit ships with.
• You understand and accept that 10-40% of your input power will be lost as heat, depending on the ratio.

Do NOT use an NMRV (or look at other technologies like helical/planetary) if:

• You require high efficiency (over 90%) to save energy or manage heat in a continuous-duty application.
• You have zero-backlash requirements for precision CNC or robotics .
• The unit will be mounted in an orientation that starves the oil-lubricated bearings, and you cannot switch to a grease-filled model.
• Your application involves frequent, high-speed reversing that could cause the worm to "hammer" the bronze wheel, leading to premature wear.

One sentence to take with you: The right NMRV reducer isn't the one that fits your motor shaft, but the one whose thermal and torque limits outlast your machine's demand.
